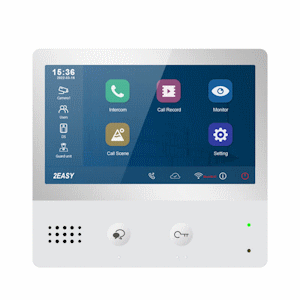

A1714 - Atigo 7 inch color monitor with touch sensitive buttons and WIFI

The Atigo A1714 is a 2-wire color monitor that has been designed with full features such as touch-sensitive buttons, LCD screen and built-in WIFI.

This highly functional 7-inch monitor has an unlock button, up / down buttons for functional monitor control and 2 door unlock buttons. This monitor also allows calls to be diverted to a phone via the 2Easy application if the monitor does not answer. The Atigo A1714 features allow the user to set the unlock parameter, time and date format, adjust the image scale, and provide control over the view and zoom of the camera.

For installation: Use the screws to fix the mounting bracket to the wall using the mounting box (The suggested installation height of the unit is 145-160cm). Connect the 2 cables to the unit and then mount it on the stand.

Features :

• Simple and intuitive navigation menu

• 7 "LCD display with touch screen

• Ultra-thin design (22mm)

• Built with Wi-Fi to divert calls through the app

• Made of high quality ABS plastic

• Indicator Do not disturb

Technical information :

• Power supply: 20-28 V DC

• Power consumption: Standby 1.8W; Working 8.16W

• Monitor screen: 7 inch color digital LCD

• Display resolutions: 800 x 480 pixels

• Video signal: 1Vp-p, 75Ohm, CCIR standard

• Wiring: 2 non-polarized wires

Dimensions :

• 161 x 174 x 22 mm (hwd)
